How a sprocket gear Strategy Pairs with the Edge Minus Input Axis

I spent last month walking factory floors from Shijiazhuang to Suzhou, and one theme kept popping up: hybrid drive trains where a differential-style power splitter sits upstream of a sprocket gear network. It sounds niche, but in fact it’s what’s quietly making conveyors smoother, packaging lines quicker, and mining plant downtime less of a drama.

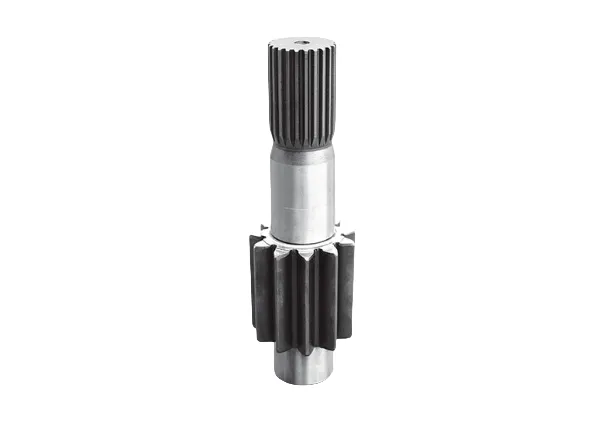

Quick context. The Edge Minus Input Axis (origin: Shijiazhuang, Hebei Province, China) is designed to subtract or differentially distribute input power to multiple outputs—think dynamic torque management for complex machinery. Pair that with a well-specified sprocket gear train and you get controllable, predictable motion, even when loads fluctuate. Many customers say it’s the difference between “works fine” and “why didn’t we install this years ago.”

Industry trends (and what actually sticks)

• Materials shifting toward carburized alloy steels (e.g., 20CrMnTi, 18CrNiMo7-6) for higher tooth endurance on sprocket gear sets.
• Surface engineering: nitriding or PVD topcoats to reduce fretting and extend chain/sprocket mating life.
• Quiet profiles and tighter runout—customers report 1–3 dB(A) lower noise on high-speed conveyors.
• Upstream torque-splitting via the Edge Minus Input Axis to tame load spikes and lower bearing temperatures ≈5–10°C in real-world use.

Process flow: from steel bar to field test

For the Edge Minus Input Axis used ahead of a sprocket gear drive:

• Materials: forged alloy steel shafts; optional stainless for corrosive lines.
• Methods: CNC turning → hobbing/splining (DIN 5480 options) → carburizing (case depth ≈0.8–1.2 mm) → grinding → shot-peening.
• Testing: dimensional per ISO 286; gear/spline accuracy per ISO 1328/AGMA 2015; hardness HRC 58–62; NDT (MT per ISO 9934); dynamic run-up and backlash checks.
• Standards touchpoints: ISO 6336 gear load capacity; chain/sprocket interfaces guided by ISO 606 where applicable.
• Service life: ≈20,000–40,000 h with correct lubrication and alignment (real-world use may vary).
• Industries: conveyors, packaging, mining, agricultural machinery, robotics cells, and differential gearboxes.

Product specifications (Edge Minus Input Axis)

Applications and advantages

• Conveyors: upstream torque-splitting + sprocket gear trains reduce chain surge and improve pick accuracy.
• Packaging: smoother index cycles; less backlash in timing assemblies.
• Mining: shock loads spread across outputs; teeth and chains live longer.

Customer feedback: a Polish 3PL reported 12% fewer chain replacements in 9 months; a Sichuan cement line saw gearbox bearing temps drop ≈7°C after retrofitting.

Vendor snapshot (what buyers compare)

Mini case studies (with numbers)

• Heavy conveyor retrofit: Edge Minus Input Axis + hardened sprocket gear set (HRC 58–60). Chain life +18%, noise −2.6 dB(A) at 1 m.
• Robotics cell: dual-output differential feeds two timed chains; pick/place error dropped from 0.9 mm to 0.4 mm (ISO 9283 method analogy, internal test).
• Pack line: nitrided sprockets with VG220 oil; maintenance interval stretched from 1,500 h to 2,100 h.

Specs and results are indicative; actual performance depends on alignment, lubrication, duty cycle, and compliance with applicable standards.

Authoritative references

1. ISO 606:2015 – Short-pitch transmission precision roller and bush chains, chain wheels and attachments.
2. ISO 6336-1:2019 – Calculation of load capacity of spur and helical gears.
3. AGMA 2101-D04 – Fundamental Rating Factors and Calculation Methods for Involute Spur and Helical Gear Teeth.
