Precision Drive Assembly: Final Drive & Power Train Solutions
The Crucial Role of Advanced Drive Assemblies in Industrial Operations
In the intricate world of industrial machinery, the efficiency and reliability of power transmission systems are paramount. At the heart of many critical applications lies the drive assembly, a sophisticated component engineered to convert and transmit mechanical energy with precision and resilience. Specifically, the Drive Assembly (Side Reduction Assembly) Gear And Shaft from ZinAnMech represents the pinnacle of engineering for heavy-duty power reduction and torque amplification. This component is not merely a collection of gears and shafts; it is a meticulously designed system that ensures optimal performance, extended operational lifespan, and significantly reduced maintenance downtime across diverse industrial landscapes. Understanding its complexities, manufacturing precision, and application versatility is key for B2B decision-makers seeking to optimize their operational efficiency and invest in durable, high-performance solutions.
Understanding the Anatomy: What is a Final Drive Assembly?
A final drive assembly, often synonymous with a drive assembly in many industrial contexts, refers to the final gear reduction unit that transmits power from the drivetrain to the wheels or working components of heavy machinery. Its primary function is to multiply torque and reduce rotational speed, thereby allowing the engine or motor to operate within its efficient RPM range while delivering the necessary force for the machine's operations. This is crucial for applications requiring high tractive effort or significant mechanical advantage, such as excavators, bulldozers, large agricultural equipment, and specialized industrial conveyors. Typically, a final drive assembly integrates a system of gears—often planetary, helical, or spur gears—enclosed within a robust housing, along with shafts and bearings designed to withstand extreme loads and continuous operation. The careful selection of gear ratios, material properties, and lubrication systems is vital for the unit's overall efficiency and durability.
Precision Manufacturing Process: From Raw Material to High-Performance Component
The manufacturing of a high-quality drive assembly involves a multi-stage, meticulously controlled process designed to ensure structural integrity and operational precision. It begins with the careful selection of premium-grade materials, typically high-strength alloy steels such as 42CrMo, 35CrMo, or 20CrMnTi, chosen for their superior hardness, wear resistance, and fatigue strength. These materials undergo rigorous initial inspection to confirm chemical composition and absence of defects. The subsequent stages involve advanced manufacturing techniques:
- Forging and Casting: Components like gear blanks and shafts are precisely forged or cast to achieve the initial desired shape and enhance grain structure, leading to improved mechanical properties.
- CNC Machining: State-of-the-art CNC (Computer Numerical Control) machining centers are employed for high-precision turning, milling, and grinding operations. This ensures tight tolerances, optimal surface finishes, and accurate tooth profiles for gears, critical for smooth operation and minimal wear.
- Heat Treatment: A crucial step, heat treatment processes such as carburizing, quenching, and tempering are applied to achieve the desired core hardness and surface hardness, significantly extending the component's service life and resistance to abrasion and impact.
- Gear Hobbing and Grinding: Specialized machinery is used to cut and finish gear teeth, ensuring precise meshing and reduced noise levels during operation.
- Quality Control and Inspection: Throughout the entire process, stringent quality control measures are implemented. This includes dimensional checks, material hardness testing (Rockwell, Brinell), non-destructive testing (NDT) like magnetic particle inspection for surface cracks, and gear profile testing. Adherence to international standards such as ISO 9001 and ANSI (American National Standards Institute) ensures consistency and reliability. The projected service life of a well-engineered drive assembly often exceeds 10,000 operational hours under specified conditions, depending on maintenance and load.

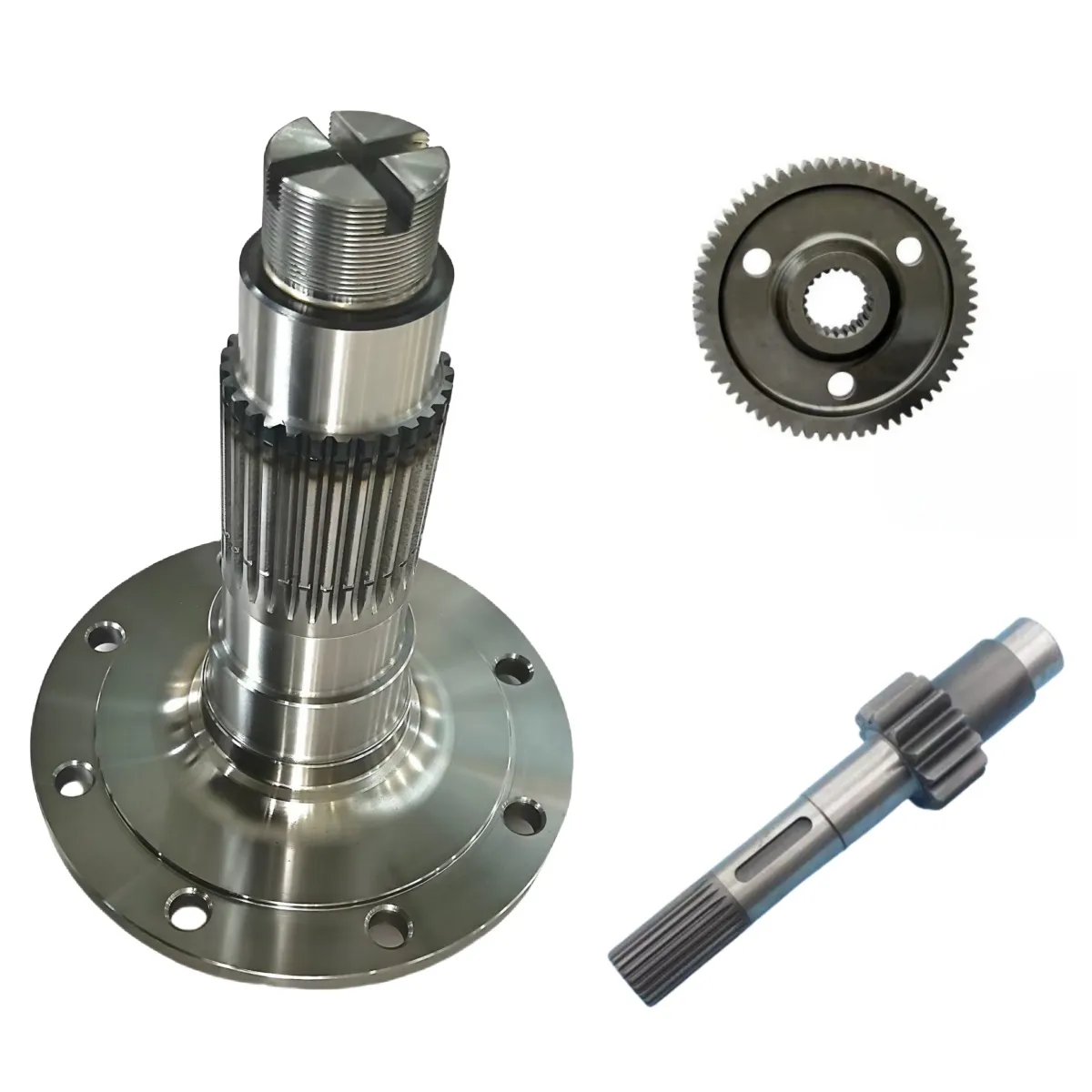

Figure 1: High-precision components of a Drive Assembly.
Technical Specifications and Performance Parameters
Choosing the right drive assembly requires a detailed understanding of its technical specifications. These parameters dictate its suitability for specific applications and directly impact performance and longevity. ZinAnMech's Drive Assembly (Side Reduction Assembly) Gear And Shaft is engineered to meet demanding industrial requirements. Below is a representative table of key technical specifications:
| Parameter | Value/Range | Unit | Notes |
|---|---|---|---|
| Nominal Output Torque | 5,000 - 300,000 | Nm | Application-dependent |
| Gear Ratio Range | 10:1 to 50:1 (customizable) | - | Single/Multi-stage reduction |
| Input Speed (Max) | 2,000 - 3,500 | RPM | Continuous operation |
| Efficiency (Typical) | >95% | % | Under optimal load conditions |
| Housing Material | Ductile Iron (GGG50) / Cast Steel | - | Robust and corrosion-resistant |
| Gear Material | Alloy Steel (e.g., 20CrMnTi, 42CrMo) | - | Carburized & Hardened |
| Operating Temperature | -20°C to +80°C | °C | Extended ranges available upon request |
| Sealing Technology | Double Lip Seals / Labyrinth Seals | - | Prevents leakage, protects against contaminants |
These specifications underscore the versatility and robustness of our Drive Assembly, designed to integrate seamlessly into diverse mechanical systems requiring reliable torque conversion and speed reduction. Precision engineering at every stage ensures that each drive assembly delivers consistent, peak performance.
Industry Trends and Application Scenarios: Powering Critical Infrastructure
The demand for advanced drive assembly solutions is surging across various heavy industries, driven by trends towards automation, energy efficiency, and predictive maintenance. Modern industrial facilities require components that not only deliver power but also integrate with smart monitoring systems to prevent downtime. ZinAnMech’s Drive Assembly (Side Reduction Assembly) Gear And Shaft is particularly suited for rigorous environments, finding extensive use in:
- Petrochemical Industry: For agitators, mixers, and large pumps where reliable, continuous operation and resistance to corrosive environments are crucial. The robust housing and superior sealing technology offer excellent anti-corrosion properties.
- Metallurgy and Mining: In crushing equipment, rolling mills, and heavy conveyors, where high torque and shock load resistance are essential. Our drive assembly excels in these demanding applications due to its robust design and high-strength materials.
- Water Treatment and Drainage: For aeration systems, sludge thickeners, and large valve actuators. The energy-efficient design helps reduce operational costs, making it an economically viable choice for continuous processes.
- Construction Equipment: As a vital component in excavators, bulldozers, and loaders, providing the necessary final gear reduction for tractive power.
- Renewable Energy: In pitch and yaw drives for wind turbines or in tracking systems for solar arrays, requiring precise and durable power transmission.
In these sectors, the ability of our drive assembly to offer superior torque transmission, high efficiency, and exceptional durability translates directly into significant operational advantages, including reduced energy consumption (often showing 5-10% energy savings compared to less efficient alternatives), lower lifecycle costs, and enhanced system reliability.
Technical Advantages and Customization Solutions
Our Drive Assembly (Side Reduction Assembly) Gear And Shaft stands out due to several distinct technical advantages. These include superior power density, allowing for compact designs without compromising on torque capacity, and exceptionally low noise and vibration levels, contributing to a more stable and quieter operational environment. The advanced lubrication channels ensure optimal component cooling and reduced wear, extending the maintenance interval. Furthermore, recognizing that no two industrial applications are identical, ZinAnMech offers extensive customization options.
Whether it's specific gear ratios, specialized material treatments for extreme environments (e.g., cryogenics or high-temperature), integrated sensor solutions for predictive maintenance, or unique mounting configurations, our engineering team collaborates closely with clients to develop tailored drive assembly solutions. This bespoke approach ensures that the final product precisely matches the performance requirements and operational constraints of your specific machinery, maximizing efficiency and minimizing total cost of ownership. For instance, a recent project involved a customized drive assembly for a high-speed packaging machine, where precise indexing and minimal backlash were critical, resulting in a 15% increase in production throughput for the client.
Ensuring Reliability: Quality Assurance and Customer Support
At ZinAnMech, our commitment to quality and customer satisfaction is unwavering. Every drive assembly undergoes a rigorous multi-point inspection and testing protocol before shipment. Our adherence to ISO 9001:2015 certification for quality management systems underscores our dedication to consistent manufacturing excellence. We maintain a long-standing reputation, having served diverse industries for over two decades, building partnerships with leading machinery manufacturers globally. Our products are supported by comprehensive documentation, including detailed installation guides and maintenance manuals, ensuring seamless integration and optimal performance throughout their operational life.
Our standard lead time for a typical drive assembly order ranges from 4 to 8 weeks, depending on customization requirements and order volume. Expedited options are available for urgent needs. We back our products with a robust 2-year warranty against manufacturing defects, reflecting our confidence in the durability and quality of our engineering. Our dedicated technical support team is available to provide expert assistance, from initial consultation and design to post-sales troubleshooting and spare parts supply, ensuring maximum uptime for your operations. Customer feedback consistently highlights our prompt response times and profound technical expertise, solidifying trust in our solutions.
Frequently Asked Questions (FAQs)
Q: What are the primary factors to consider when selecting a drive assembly?
A: Key factors include required output torque, input speed, desired gear ratio, operating environment (temperature, contaminants), duty cycle, and mounting configuration. It's crucial to also consider efficiency ratings and material specifications for long-term reliability and cost-effectiveness.
Q: How does ZinAnMech ensure the longevity of its drive assembly products?
A: Longevity is ensured through a combination of high-quality alloy steel materials, advanced heat treatment processes (e.g., carburizing for surface hardness), precision CNC machining for accurate gear profiles, and stringent quality control including non-destructive testing. Our designs also incorporate optimized lubrication systems and robust sealing to minimize wear and prevent contamination.
Q: Can your drive assembly be integrated with existing machinery?
A: Yes, our design flexibility and customization capabilities allow for seamless integration with a wide range of existing industrial machinery. We offer various mounting options and can adapt input/output shaft configurations to match your current setup. Our engineering team provides detailed integration support to ensure compatibility and optimal performance.
Conclusion: Investing in Superior Drive Assembly Technology
The selection of a high-performance drive assembly is a strategic decision that directly impacts the productivity, reliability, and longevity of heavy industrial machinery. ZinAnMech's Drive Assembly (Side Reduction Assembly) Gear And Shaft embodies engineering excellence, offering a robust, efficient, and customizable solution for the most demanding applications. By prioritizing precision manufacturing, advanced material science, and comprehensive quality assurance, we provide components that not only meet but exceed industry standards, ensuring superior torque transmission, extended operational life, and significant cost savings over the total lifecycle. Partnering with ZinAnMech means securing a reliable power transmission solution backed by decades of expertise and a commitment to customer success, allowing your operations to run smoother, longer, and more efficiently.
References
- Smith, J. A. (2022). "Advanced Gear Design and Manufacturing for Heavy Machinery." Journal of Mechanical Engineering Research & Developments.
- Brown, L. M., & Davis, R. K. (2021). "Impact of Material Selection and Heat Treatment on Gearbox Longevity in Industrial Applications." International Journal of Materials Science and Engineering.
- Chen, W., & Li, X. (2023). "Efficiency Optimization of Planetary Gear Systems in High-Torque Industrial Drives." Proceedings of the IEEE International Conference on Power Transmission.
